Tube Bending Machine: Types, Working Principle, and Selection Guide

2026-04-22 11:48:35

Tube bending machines are essential pieces of equipment in the metal fabrication industry, designed to bend metal tubes and pipes into diverse shapes such as circular, rectangular, and angular forms. These machines serve as core processing equipment in industries including automotive, furniture manufacturing, construction, aerospace, plumbing, and HVAC. Compared with manual tube bending, tube bending machines guarantee consistent and high-precision bending effects while minimizing material deformation, greatly improving the quality and efficiency of metal tube processing. This article systematically introduces the definition, working principle, main types, advantages, application scenarios, and scientific selection criteria of tube bending machines, providing professional guidance for industrial production and equipment selection.

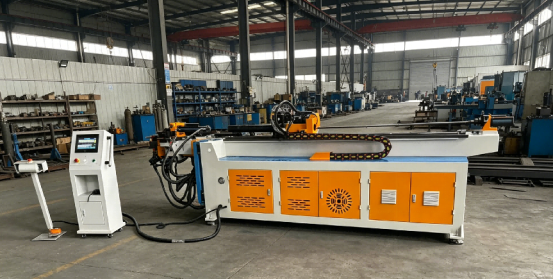

（CNC tube bending machine）

What Is a Tube Bending Machine?

A tube bending machine is a specialized metal processing device dedicated to bending metal tubes and pipes without causing material cracking, collapse, or excessive deformation. By applying mechanical force, hydraulic pressure, or electric drive, it pushes or pulls the metal tube to bend along a customized die, accurately controlling key parameters such as bend angle, bend radius, and forming shape.

This type of equipment has strong material adaptability and can process a variety of common metal tubes including carbon steel, stainless steel, aluminum alloy, copper alloy, and titanium alloy. It supports a wide range of tube specifications, from small-diameter thin-walled pipes used in precision industries to large-diameter thick-walled structural tubes for engineering applications, meeting diversified processing needs.

Working Principle of Tube Bending Machines

The core working logic of a tube bending machine is to fix the tube and apply controllable external force to make it plastically deform along the die. Although the detailed processes vary among different models, the general workflow follows these standard steps:

Tube Preparation

The raw tube is cut to the specified length, and the end surface is deburred and polished to remove burrs and sharp edges, avoiding scratches or blockages during the bending process and ensuring forming quality.

Clamping and Mandrel Insertion

The tube is firmly fixed by a clamping device to prevent displacement, sliding, or rotation during bending. For thin-walled tubes or tight-radius bending requirements, a mandrel is inserted into the tube cavity to support the inner wall and effectively prevent tube collapse, wrinkling, or cross-sectional deformation.

Formal Bending

The machine outputs driving force—hydraulic, electric, or mechanical—to bend the tube tightly around the profiling die. The die’s shape and size directly determine the final bend radius and profile, ensuring standardized forming.

Angle Control and Forming

The bend angle is precisely controlled through a digital control system, mechanical limit, or manual adjustment. High-precision models can achieve an angle control accuracy of ±0.5°, ensuring consistency between batches.

Unloading and Quality Inspection

After bending is completed, the clamping device is released, the mandrel (if used) is withdrawn, and the formed tube is unloaded. Conventional inspections include checking for surface scratches, wall thickness reduction, angle deviation, and internal deformation to confirm compliance with processing standards.

Main Types of Tube Bending Machines

Tube bending machines can be classified in multiple ways, with the two most practical categories being by bending method and by control system.

Classified by Bending Method

Rotary Draw Bending Machine

The most widely used type in industrial processing. It drives the tube to rotate and wrap around a rotating die for bending. It excels in small-radius, high-precision bending and is widely used in automotive, aerospace, and precision machinery industries for manufacturing complex components. It is available in hydraulic, electric, and CNC-controlled versions.

Compression Bending Machine

Applies external pressure directly to the tube to bend it around a fixed die. Suitable for large-radius bending and thick-walled tube processing, with advantages of simple structure and strong load-bearing capacity. It is commonly used in construction, furniture, and profile processing.

Mandrel Bending Machine

Equipped with a special mandrel as an internal support during bending. It effectively prevents thin-walled tubes from collapsing and ensures smooth inner walls. Ideal for thin-walled tubes, high-gloss surface requirements, and tight-radius bending scenarios.

Roll Bending Machine

Uses three or more groups of rolling wheels to continuously extrude and bend the tube, gradually forming arcs, circles, or large-curvature profiles. Suitable for large-diameter tubes, pipeline engineering, exhaust pipes, and cylindrical structural parts.

Classified by Control System

Manual Tube Bending Machine

Operators manually adjust bending force, angle, and stroke. Features low cost, simple operation, and flexible debugging. Suitable for small-batch production, sample processing, and simple single-angle bending tasks.

Semi-Automatic Tube Bending Machine

Adopts hydraulic or electric power drive, with manual assistance for parameter setting and clamping. Offers higher precision and efficiency than manual models, suitable for medium-batch production and conventional bending tasks.

CNC Tube Bending Machine

Fully controlled by a computer system, supporting programmable input of bend angles, radii, sequences, and multi-station coordinated actions. Realizes automatic continuous processing of multi-angle, 3D, and complex bends. Characterized by high precision, strong repeatability, and high efficiency, it is suitable for large-batch and high-precision production lines.

Advantages of Tube Bending Machines

High Forming Precision: Stable control of bend angles and radii reduces dimensional deviations, material waste, and rework rates.

Low Deformation Rate: With dies and optional mandrels, it avoids tube collapse, wrinkling, and wall thickness unevenness, maintaining intact tube profiles.

High Production Efficiency: Automates or semi-automates the bending process, reducing manual labor and greatly improving processing speed compared to manual operation.

Strong Versatility: Compatible with multiple metal materials, tube diameters, wall thicknesses, and bend shapes, adapting to multiple industries and processing requirements.

Cost-Effectiveness: Reduces material loss and post-processing costs, improving long-term production economy for enterprises.

Wide Applicability: Meets processing needs from simple single bends to complex 3D multi-angle bends.

Typical Applications of Tube Bending Machines

Automotive Industry: Processing exhaust pipes, fuel pipelines, brake pipelines, air conditioning pipelines, chassis structural parts, and decorative trims.

Furniture Industry: Manufacturing curved metal frames for chairs, tables, shelves, fitness equipment, and outdoor furniture.

Construction Industry: Producing handrails, stair railings, scaffolding parts, steel structure components, and decorative profiles.

Aerospace Industry: Processing high-precision pipelines for aircraft hydraulic systems, fuel systems, air circulation systems, and lightweight structural parts.

Plumbing & HVAC Industry: Bending water supply pipes, drainage pipes, gas pipelines, ventilation ducts, and air conditioning connecting pipes.

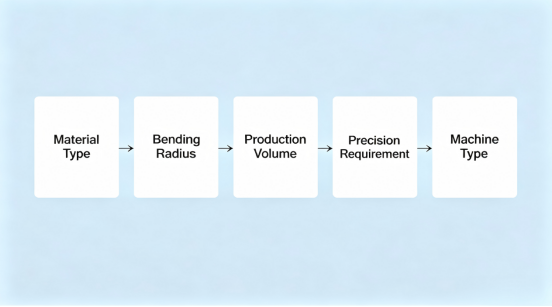

（key factors for selecting a tube bending machine）

How to Choose the Right Tube Bending Machine

Selecting a suitable tube bending machine requires comprehensive evaluation based on actual production conditions, focusing on the following core factors:

Tube Material and Specifications

Confirm the tube material (stainless steel, aluminum, copper, etc.), outer diameter, wall thickness, and length. Materials with higher hardness and strength require equipment with greater driving force; thin-walled tubes require mandrel-supported bending functions.

Bending Process Requirements

For tight-radius, high-surface-quality, or thin-walled bending, prioritize mandrel bending or rotary draw bending machines. For large-radius or thick-walled tube bending, compression or roll bending machines are more appropriate.

Production Volume and Batch Size

Small-batch and sample production can choose manual or semi-automatic models. Large-batch, continuous production, or complex multi-angle bending requires CNC tube bending machines for efficiency and consistency.

Precision and Tolerance Requirements

High-precision fields such as automotive and aerospace require CNC-controlled models with accurate angle control. General engineering applications can use semi-automatic or mechanical positioning models.

Equipment Stability and After-Sales Support

Choose equipment with a stable structure, reliable electrical and hydraulic systems, and complete after-sales services including maintenance, spare parts supply, and operational training to ensure long-term stable operation.

Conclusion

As key equipment in modern metal fabrication, tube bending machines integrate high precision, high efficiency, and high versatility, solving the problems of low efficiency and poor consistency in traditional manual tube bending. Mastering the working principle, classification characteristics, application scenarios, and scientific selection methods of tube bending machines helps enterprises select matching processing equipment, optimize production processes, improve product quality, and reduce comprehensive production costs.

With the continuous development of metal processing demand in industries such as automotive, construction, and aerospace, tube bending machines are developing toward higher intelligence, precision, and automation, becoming an indispensable core equipment in the metal manufacturing industry.

Other Industries: Also widely used in shipbuilding, medical equipment, sports equipment, and electrical appliance manufacturing.
